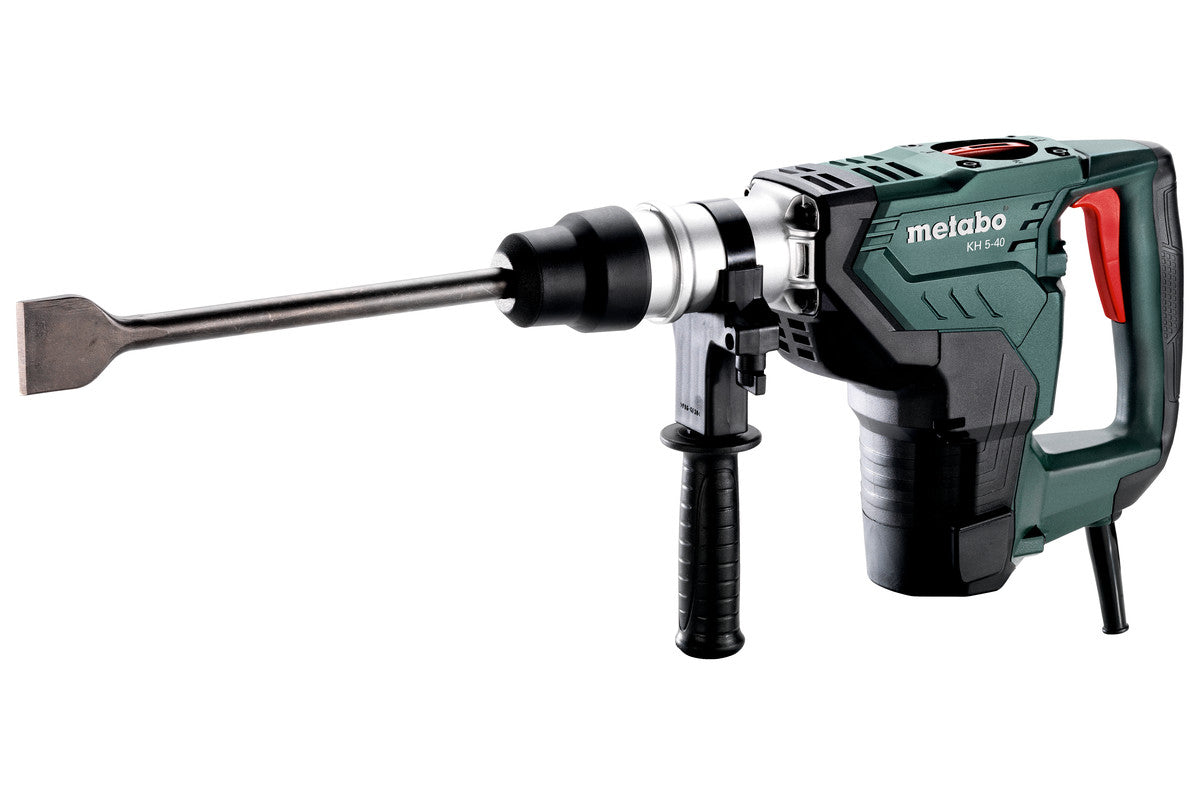

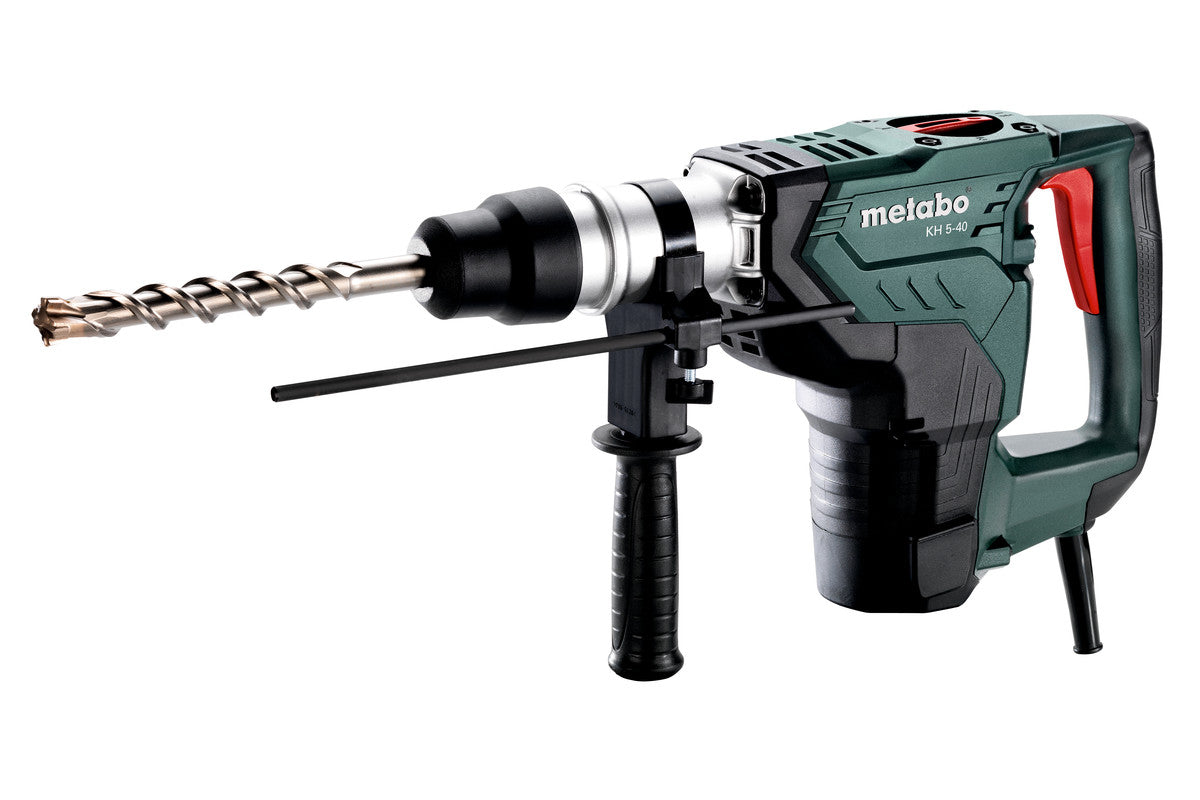

KH 5-40 (600763500) Combination hammer

• Combination hammer with 2 functions: hammer drilling and chiselling
• Metabo S-automatic safety clutch: mechanical decoupling of the drive for safe working should the drill stop unexpectedly
• Robust die cast aluminium gear housing for optimum heat dissipation and long service life

Technical Data

Characteristics

• Max. single blow energy (EPTA): 7.1 J
• Maximum impact rate: 2800 bpm
• Rated input power: 1100 W
• Drill-Ø concrete with hammer drills: 40 mm
• Drill-Ø masonry with core bits: 105 mm
• No-load speed: 620 rpm
• Tool holder: SDS-max
• Collar diameter: 61 mm
• Weight (without power cable): 7.1 kg
• Cable length: 4 m

Vibration

• Hammer drilling concrete: 16.5 m/s²
• Uncertainty of measurement K: 1.5 m/s²
• Chiseling: 13.3 m/s²
• Uncertainty of measurement K: 1.5 m/s²

Noise emission

• Sound pressure level: 95 dB(A)
• Sound power level (LwA): 106 dB(A)
• Uncertainty of measurement K: 3 dB(A)

Scope of Delivery

• rubber-coated side handle
• Drilling depth guide
• Lubricant for tool shank end
• Plastic carry case
