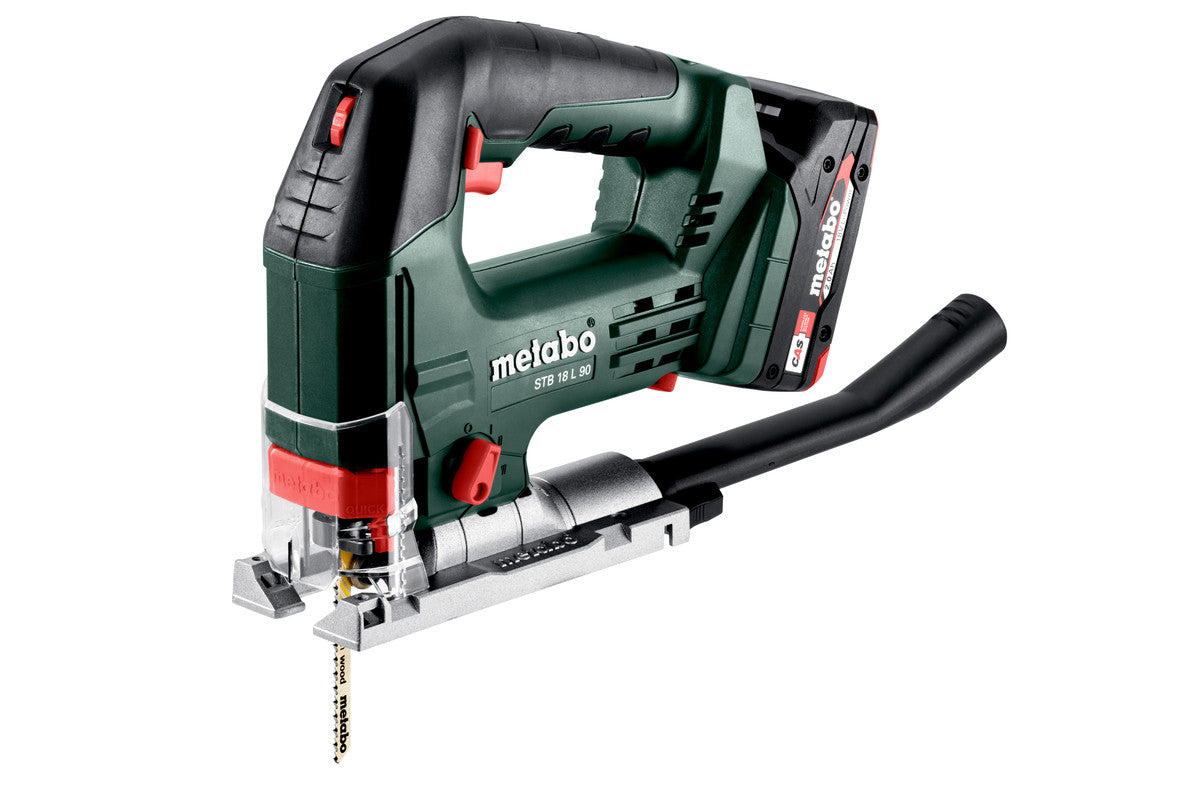

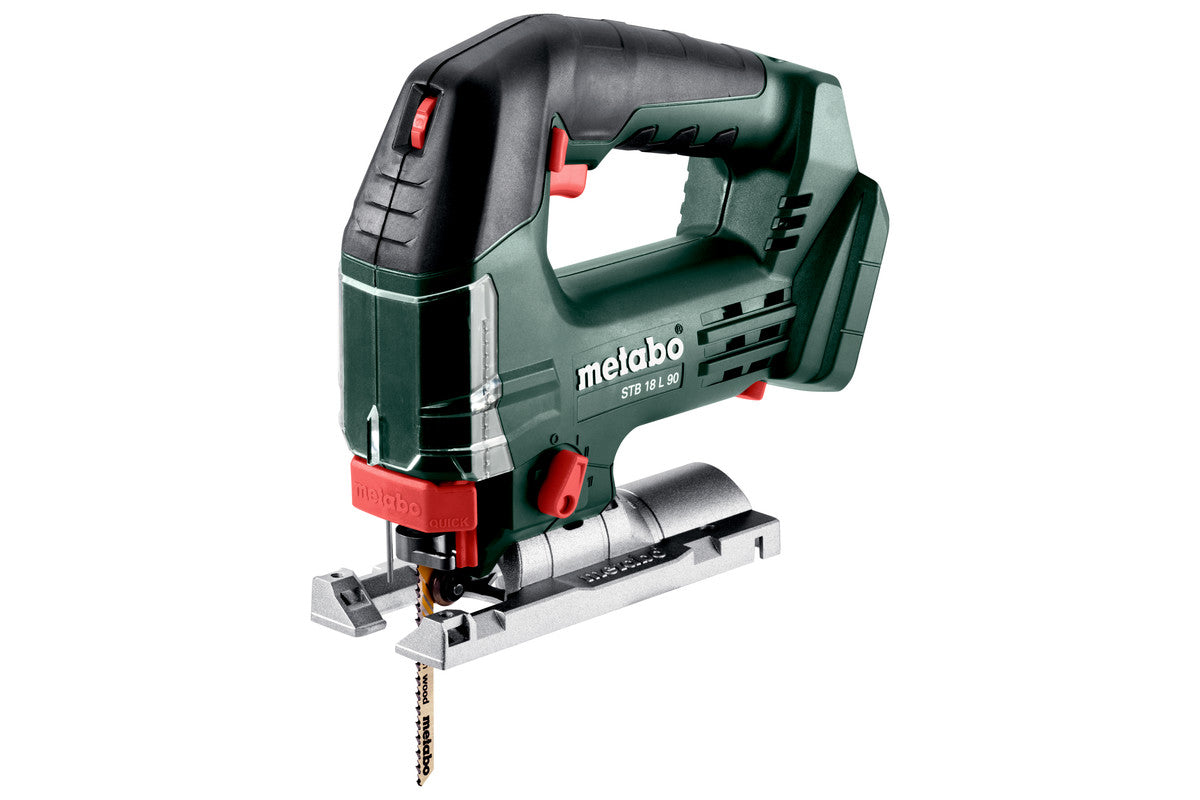

STB 18 L 90 (601048840) Cordless jigsaw

• The daily helper for universal sawing applications: compact cordless jigsaw for cuts in wood up to 90 mm
• Metabo "Quick" for changing saw blades without tools and with automatic ejection
• Top handle with non-slip soft-grip surface
• Efficient chip blowing function for clear view of the cutting line
• Integrated LED work light for illumination of the cutting line
• Restart protection: prevents unintentional start-up after battery pack change
• Extraction possibility by means of connecting an all-purpose vacuum cleaner
• With metaBOX, the intelligent solution for transport and storage
• Many brands, one battery pack system: This product can be combined with all 18V battery packs and chargers of the CAS brands: www.cordless-alliance-systems.com

Technical Data

Characteristics

• Battery voltage: 18 V
• Cutting depth wood: 90 mm
• Cutting depth NF metal: 25 mm
• Cutting depth sheet steel: 10 mm
• Swivel range from / to:: - 45 / + 45 °
• Pendulum stroke levels: 4
• Strokes in idle: 700 - 3000 rpm
• Saw blade stroke: 22 mm
• Weight without battery pack: 1.6 kg
• Weight with battery pack: 2 kg

Vibration

• Sawing wood: 4 m/s²
• Uncertainty of measurement K: 1.5 m/s²
• Sawing metal: 6.3 m/s²
• Uncertainty of measurement K: 1.5 m/s²

Noise emission

• Sound pressure level: 90 dB(A)
• Sound power level (LwA): 98 dB(A)
• Uncertainty of measurement K: 5 dB(A)

Scope of Delivery

• Extraction nozzle
• Protective glass
• Chip guard plate
• 2 Jigsaw blades
• Hexagonal wrench
• metaBOX 145 L
• without battery pack, without charger
