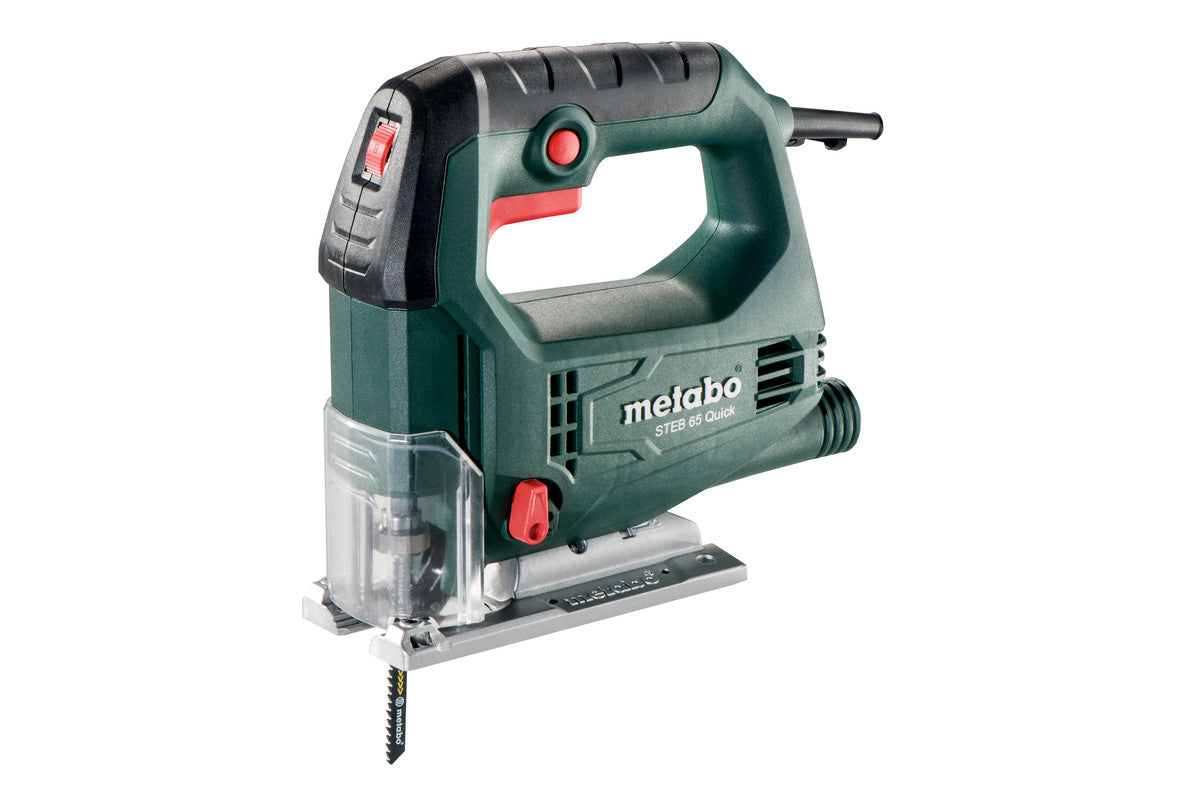

STEB 65 Quick (601030000) Jigsaw

• Metabo Quick for changing saw blades without tools
• Top handle with non-slip soft-grip surface
• Variospeed (V) Electronics for working with customised stroke rates for the materials used
• Extraction possibility by means of connecting an all-purpose vacuum cleaner
• Chip blowing function for clear view of cutting line

Technical Data

Characteristics

• Rated input power: 450 W
• Output power: 230 W
• Cutting depth wood: 65 mm
• Cutting depth NF metal: 18 mm
• Cutting depth sheet steel: 6 mm
• Swivel range from / to:: - 45 / + 45 °
• Pendulum stroke levels: 4
• Strokes in idle: 600 - 3000 rpm
• Saw blade stroke: 18 mm
• Weight (without power cable): 1.9 kg
• Cable length: 2.5 m

Vibration

• Sawing wood: 11 m/s²
• Uncertainty of measurement K: 3 m/s²
• Sawing metal: 8 m/s²
• Uncertainty of measurement K: 3 m/s²

Noise emission

• Sound pressure level: 89 dB(A)
• Sound power level (LwA): 97 dB(A)
• Uncertainty of measurement K: 5 dB(A)

Scope of Delivery

• Protective glass
• Hexagonal wrench
