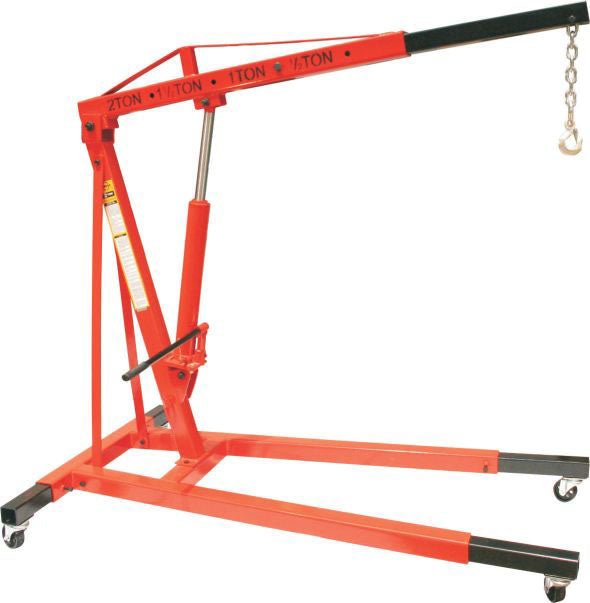

CRANE MOBI ECONOMY 2T (WF)
Need Pricing?
Get the best deal tailored to your quantity.
Checkout
Delivery
Returns
Heavy duty welded construction from rugged tubular steel
Metered control release valve enables boom lowering at a precisely controlled rate of speed
Long hydraulic ram is equipped with a special, patented built-in bypass mechanism
Ideal for lifting and transporting engines, transmissions, generators, pumps, compressors and other heavy equipment
Spares available - Ram Hydraulic Unit - Swivel Caster Complete - Front Wheels
Crane conveniently folds away for easy storage & transportation
Capacity (Tons) 2
Min Height 100mm
Max Height 2380mm
Base Length 1745mm
Base width Front 1010mm
Base width Rear 800mm
Gross Weight 90kg
Package Size 1360*315*160mm
730*585*90mm
BOOM CAPACITY MIN HOOK MAX HOOK BOOM
POSITION KG HEIGHT HEIGHT LENGTH
1 2000 315mm 1880mm 1020mm
2 1500 155mm 2030mm 1200mm
3 1000 0mm 2160mm 1380mm
4 500 0mm 2320mm 1560mm
