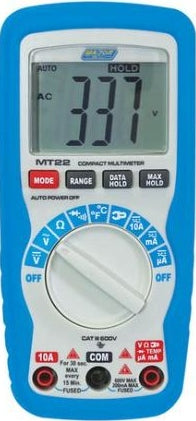

Major Tech Compact Multimeter (MT22)
Need Pricing?
Get the best deal tailored to your quantity.
Checkout
Delivery
Returns
The MT22 is a compact meter with double moulded rubber housing and meets the International Standard IEC-61010-1 CAT lll 600V. The large LCD display screen has a white backlight for use in arduous areas. It is a very economical tester ideally suited for everyday use by electricians, electronic technicians as well as the air conditioning industry. This compact auto ranging mulitmeter has a large 2000 count LCD and measures AC and DC voltage up to 1000 volts, AC and DC Current up to 10 Amps, Temperature measurement in °C or °F and resistance, plus a diode test function and continuity buzzer. The meter has a “Clamp-On Adaptor” range which allows the user to use an optional AC and DC clamp adaptor on the meter to increase the current measuring capabilities up to 2000 Amps. Other features include auto power off .
Features :
Measures ACV and DCV to 1000V
MIN/MAX Recordings
Temperature between 50°C to 1000°C
Fused 10A Range
Diode Test & Continuity buzzer
Data Hold
Duty Cycle
Resistance measurement
2000 Count LCD
Full Ranges Protection
Overmould rubber housing
Integrated test lead holder
Clamp-on Adaptor range
CAT III 600V and CAT II 1000V
Specifications:
DC Voltage: 1000V
DC Voltage resolution: 0.1mV
DC Voltage accuracy: ±( 1.2%+2 )
AC Voltage: 1000V
AC voltage accuracy: ±(1.5% +3)
AC Voltage resolution: 0.1mV
DC Current: 10A
DC Current resolution: 1mA
DC Current accuracy: ±(2.5%+5)
AC Current: 10A
AC current resolution: 1mA
AC Current accuracy: ±(3.0% +7)
Resistance: 20M?
Resistance resolution: 0.1?
Resistance accuracy: ±(1.2% +2)
Frequency: 10MHz
Frequency resolution: 0.001Hz
Frequency accuracy: ±(1.2% +3)
Capacitance accuracy: ±(3.0% +5)
Temperature: -50 to 1000°C
Temperature resolution; 1°C
Temperature accuracy: ±( 3.0%+5)
Continuity: Yes
Diode Test: Yes
AC Bandwidth: 50.0Hz to 60.0Hz
Digital Display: 2000
Over-range indication: Yes
Input Impedance: ?10M? VDC & ?10M? VAC
Min Max; Yes
Data Hold: Yes
Enclosure: Double moulded
Low battery indication: Yes
Weight: 255g
Dimensions: 150 x 70 x 48mm
What's in the box
1x MT22 Multimeter
1 x 9V Battery
1 x K-type Temperature Probe
1 x Test Leads
1x Instruction Manual
