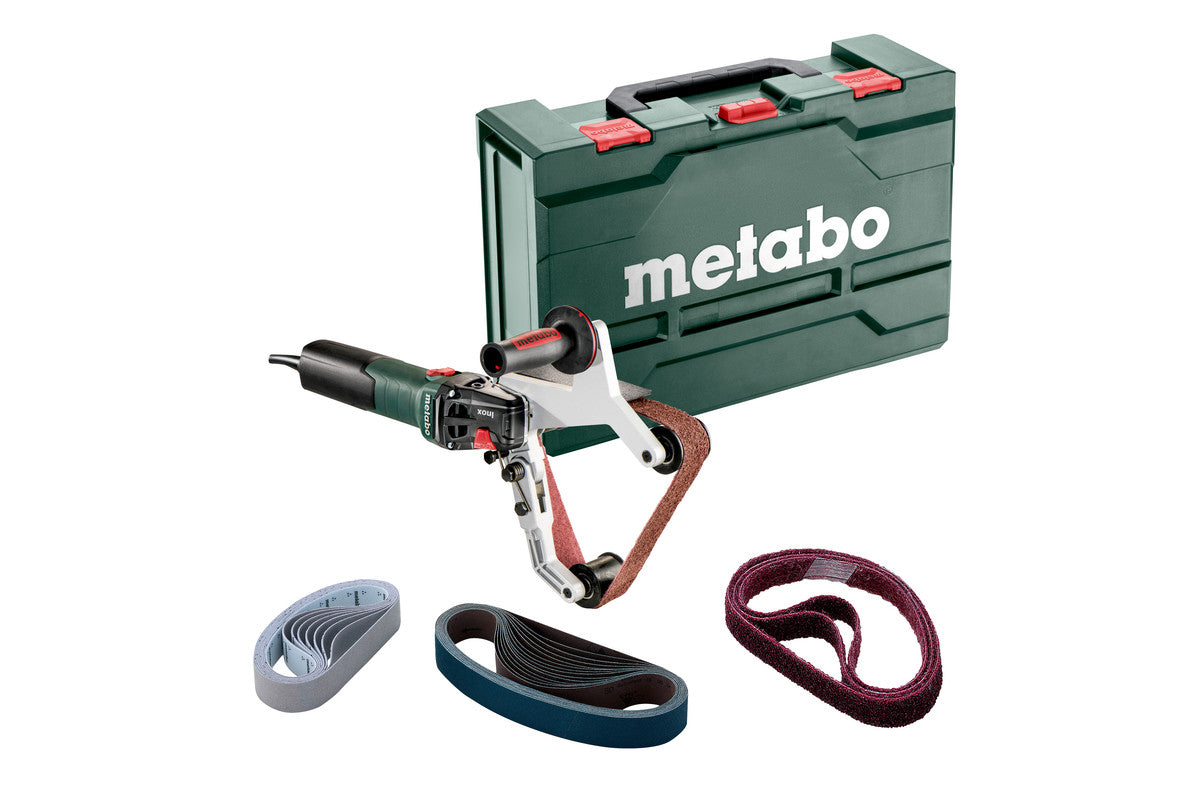

RBE 15-180 Set (602243500) Tube belt sander

• Powerful tube belt sander for processing even larger stainless steel pipes
• Large wrap angle of 270° for smooth surfaces and quick work progress
• Metabo Marathon motor with patented dust protection for long service life
• Vario-Tacho-Constamatic (VTC)-Full Wave Electronics with Thumbwheel: for working at customised speeds to suit the application material and speeds that remain almost constant, even under load
• Rubberised drive roller: reduces slipping of the sanding belt
• Tool-free change of sanding belt and adjustable belt guide
• Overload protection: protects the motor from overheating
• Electronic soft start for smooth start-up
• Restart protection: prevents unintentional start-up after power supply interruption
• Auto-stop carbon brushes to protect the motor
• With metaBOX, the intelligent solution for transport and storage

Technical Data

Characteristics

• Rated input power: 1550 W
• Output power: 940 W
• Belt speed in idle: 8.4 - 28 m/s
• Dimensions of grinding belt: 40 x 760 mm
• Maximum pipe diameter: 180 mm
• Wrap angle: 270 °
• Weight (without power cable): 3.4 kg
• Cable length: 4 m

Vibration

• Surface grinding: 2.5 m/s²
• Uncertainty of measurement K: 1.5 m/s²

Noise emission

• Sound pressure level: 97 dB(A)
• Sound power level (LwA): 105 dB(A)
• Uncertainty of measurement K: 3 dB(A)

Scope of Delivery

• Side handle
• 10 Sanding belts zirconia (40x760 mm; P80)
• 2 Pyramid sanding belts (40x760 mm; P280/A65)
• 2 Pyramid sanding belts (40x760 mm; P400/A45)
• 2 Pyramid sanding belts (40x760 mm; P600/A30)
• 2 Pyramid sanding belts (40x760 mm; P1200/A16)
• 3 Fleece bands (40x760 mm medium)
• metaBOX 185 XL
