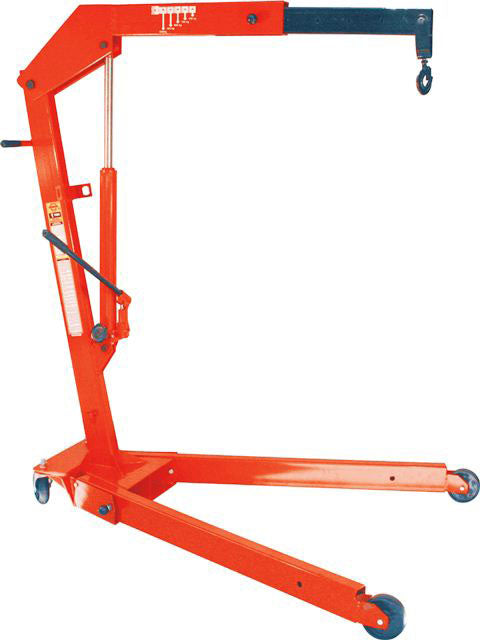

CRANE MOBI STANDARD FOLDING 1T (TR)
Need Pricing?
Get the best deal tailored to your quantity.
Checkout
Delivery
Returns
Heavy duty welded construction from rugged tubular steel
Metered control release valve enables boom lowering at a precisely controlled rate of speed
Long hydraulic ram is equipped with a special, patented built-in bypass mechanism
Ideal for lifting and transporting engines, transmissions, generators, pumps, compressors and other heavy equipment
Spares available - Ram Hydraulic Unit - Caster Assembly - Front Wheels
Crane conveniently folds away for easy storage & transportation
Capacity (Tons) 1
Base Length 1520mm
Base Width Front 1120mm
Base Width Rear 1100mm
Gross Weight 83,0kg
BOOM CAPACITY MIN HOOK MAX HOOK BOOM
POSITION KG HEIGHT HEIGHT LENGTH
1 1000 400mm 1970mm 950mm
2 900 300mm 2020mm 1050mm
3 800 200mm 2080mm 1150mm
4 700 1000mm 2130mm 1250mm
5 600 - 2180mm 1350mm
Heavy duty welded construction from rugged tubular steel
Metered control release valve enables boom lowering at a precisely controlled rate of speed
Long hydraulic ram is equipped with a special, patented built-in bypass mechanism
Ideal for lifting and transporting engines, transmissions, generators, pumps, compressors and other heavy equipment
Spares available - Ram Hydraulic Unit - Caster Assembly - Front Wheels
Crane conveniently folds away for easy storage & transportation
Capacity (Tons) 1
Base Length 1520mm
Base Width Front 1120mm
Base Width Rear 1100mm
Gross Weight 83,0kg
BOOM CAPACITY MIN HOOK MAX HOOK BOOM
POSITION KG HEIGHT HEIGHT LENGTH
1 1000 400mm 1970mm 950mm
2 900 300mm 2020mm 1050mm
3 800 200mm 2080mm 1150mm
4 700 1000mm 2130mm 1250mm
5 600 - 2180mm 1350mm
